Product Overview
High-frequency flat plate transformers and high-frequency flat plate inductors are core magnetic components specially designed for high-frequency power supply systems. They adopt advanced planar structures and winding designs to ensure high efficiency and high reliability.The products are widely applied in fields such as switching power supplies, aerospace, electric vehicles, industrial power supplies, and communication equipment.Its design complies with international industrial standards (such as UL/IEC/EN60601-1, UL/IEC/EN61558-1, etc.), with a power range from 5W to 20KW, a frequency range from 20KHz to 2MHz, and an efficiency of up to 98%.
(

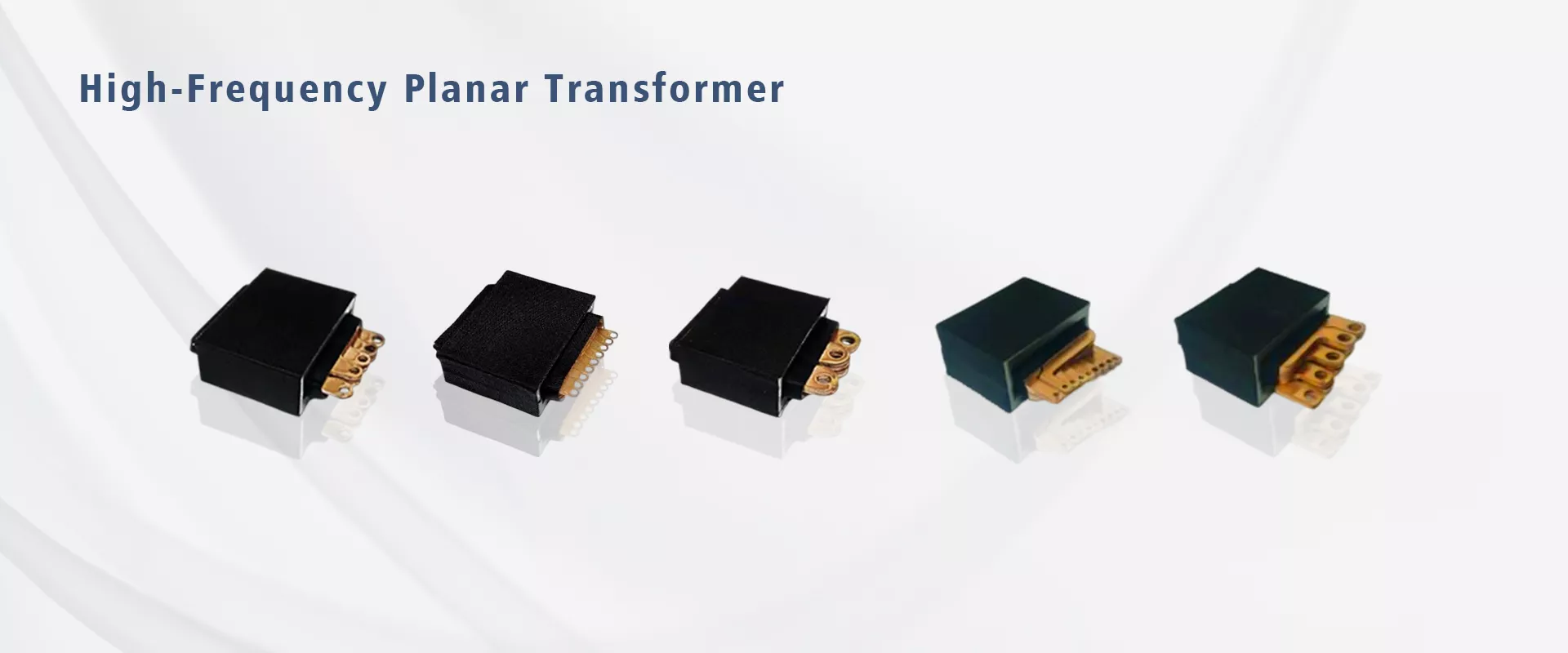

HF Planar Transformer)——
Sale PN：0r0040r045100500*--
Power kw：0.004-0.045
Input Voltage V：12-60
Sale PN：0r060r22100500*--
Power kw：0.06-0.22
Input Voltage V：12-60
Sale PN：Or180r65100500*--
Power kw：0.18-0.65
Input Voltage V：24-110
Sale PN：0r451r2100500*--
Power kw：0.45-1.2
Input Voltage V：36-195
Sale PN：0r551r8100500*--
Power kw：0.55-1.8
Input Voltage V：48-240
Sale PN：0r82r5100500*--
Power kw：0.8-2.5
Input Voltage V：48-300
Sale PN：13100300*--
Power kW：1-3
Input Voltage V：110-570
Sale PN：1r54100300*--
Power kw：1.5-4
Input Voltage V：110-570
Sale PN：1r55100300*--
Power kw：1.5-5
Input Voltage V：220-600
Sale PN：1r5640300*--
Power kW：1.5-6
Input Voltage V：220-600
Sale PN：4r51240300*--
Power kw：4.5-12
Input Voltage V：220-600
Sale PN：183840100*--
Power kw：18-38
Input Voltage V：220-570
(

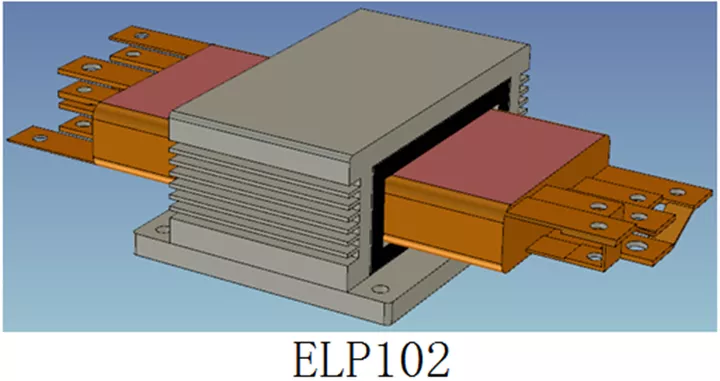

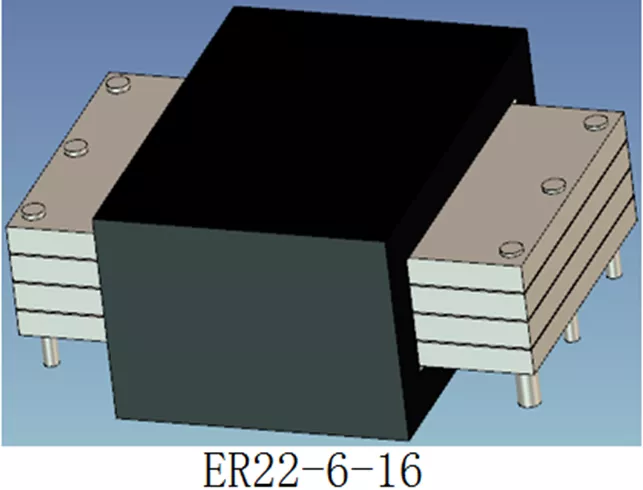

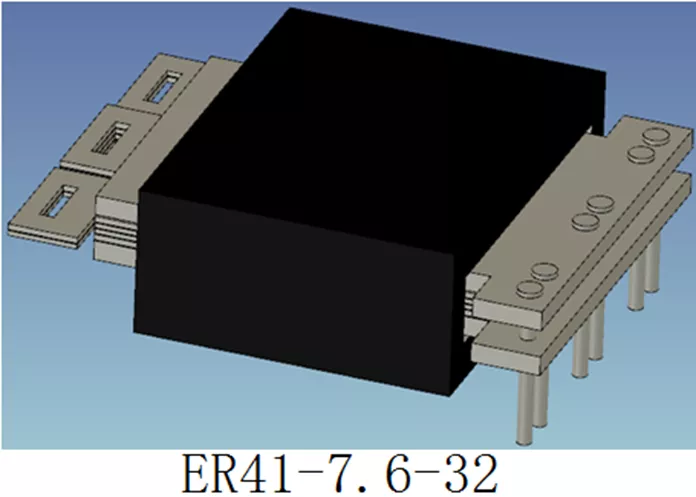

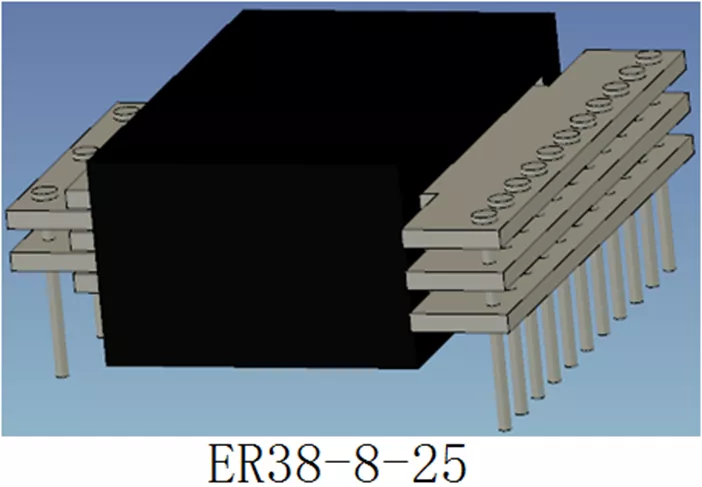

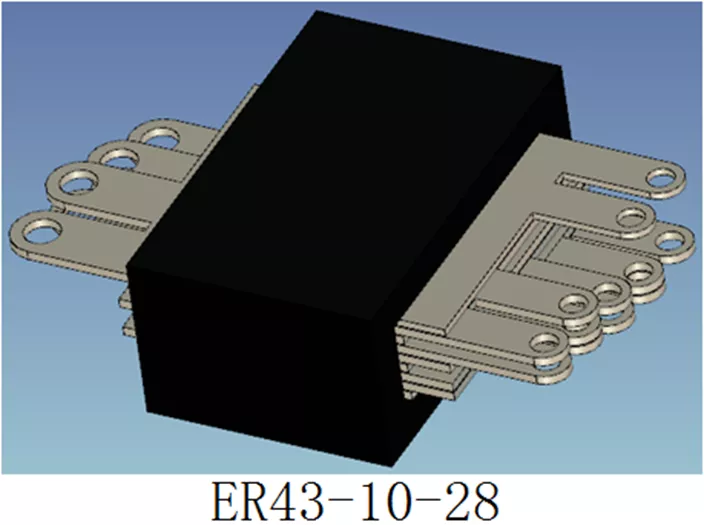

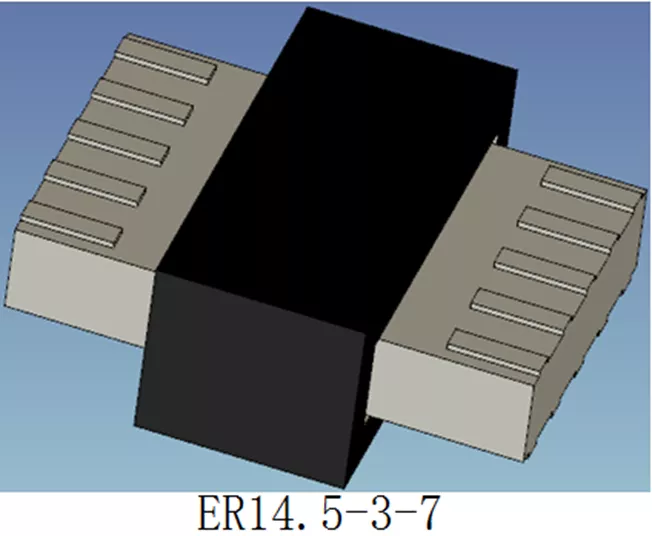

HF Planar Inductor)——
（Continued）
Product Advantages
Small package size, low height : The flat structure design significantly reduces the core size, especially suitable for space-limited application scenarios.
Small parasitic parameters, low leakage inductance : Multilayer printed circuit board winding design effectively reduces DC copper resistance, leakage inductance and distributed capacitance.
Low loss, high efficiency : high-frequency power ferrite material ensures low core loss, and the efficiency can reach 98%.
High power density : High power density design meets the development needs of modern switching power supplies.
Low temperature rise, high reliability : temperature class H, to ensure stable operation in high temperature environment.
Low resistance, good heat dissipation : Optimized winding design reduces resistance and improves heat dissipation performance.
Strong anti-interference ability : Good magnetic shielding design effectively suppresses RF interference.
Customized services : Tailored solutions are provided according to customer needs, covering electrical specifications and usage environments.
