Product Overview
High-frequency high-voltage transformer is a special magnetic device developed by SK Electric Company for harsh industrial scenarios. Based on high-frequency (7-35kHz) and high-voltage (25kV) technology design, it covers the power range of 1kW-100kW and supports wide-frequency band operation from 5kHz-350kHz. The product strictly follows international standards such as UL/IEC/EN61558-1 and CSA C22.2, and is suitable for electroplating high-voltage power supply, dust removal equipment, environmental protection equipment, special power supply and other fields to meet high efficiency and high reliability requirements. The core material uses internationally renowned brand magnetic components to ensure stable performance.

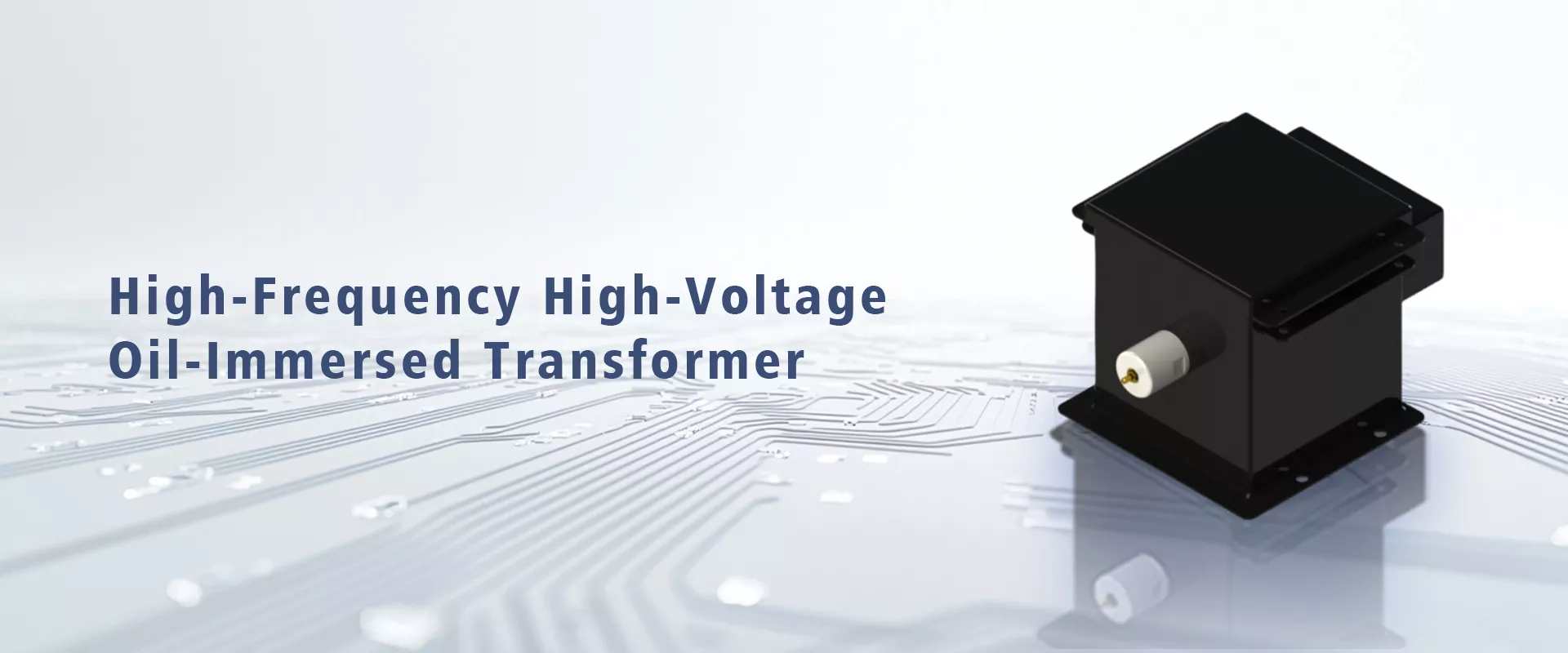

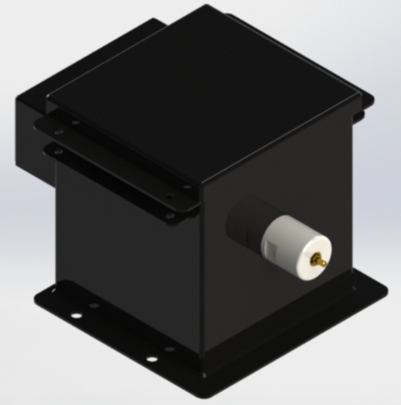

HF-HV Oil Transformer
Sale PN 2027
Power：3.5(kW)
Output Voltage：6/7/8/9/10(kV)
Sale PN 2067
Power：7.0(kW)
Output Voltage：6/7/8/9/10(kV)
Sale PN 2068
Power：14.0(kW)
Output Voltage：6/7/8/9/10(kV)
Product Advantages
Small package size, low height : compact design for space-constrained applications.
Small parasitic parameters, low leakage inductance : Optimized design reduces the impact of parasitic parameters on system efficiency.
Low loss, high efficiency : high efficiency design, power up to 98%.
Flexible and controllable resonant frequency : the resonant frequency can be adjusted according to customer needs.
Low temperature rise, high reliability : Low temperature rise design ensures long-term stable operation of the equipment.
High withstand voltage level : 25KV withstand voltage level, suitable for high voltage application scenarios.
Low resistance : low resistance design, reduce energy loss.
Multiple topological structure support : support forward, flyback, half bridge, full bridge, push-pull, phase-shifted full bridge and other topological structures.
Customized design : Provide customized solutions according to customer needs to meet different application scenarios.
